Overview
The URTC Vehicle-Mounted Hybrid Positioning Terminal (Model HXZK-URTC) is an industrial-grade positioning device designed for high-precision tracking of vehicles, cranes, engineering machinery, and factory/yard mobile equipment.
It supports RTK centimeter-level outdoor positioning, optional UWB sub-meter indoor positioning, and GNSS full-constellation navigation, making it ideal for applications requiring continuous and highly accurate tracking across mixed indoor–outdoor environments.
The terminal adopts a separated architecture—a vehicle host unit, GNSS/UWB antennas, and coaxial cable connection—delivering stronger signal reception and easier installation on large machinery.
Hybrid Positioning System Architecture
The URTC terminal supports a three-layer fused positioning architecture:
① Outdoor RTK + GNSS High-Precision Layer
-
Uses RTK correction data for centimeter-level accuracy
-
Ideal for open-sky environments such as ports, mining areas, construction zones
-
Accuracy:
-
Horizontal: ±3 cm +1 ppm
-
Vertical: ±5 cm +1 ppm
-
② Indoor / Zone UWB Precision Layer (Optional)
-
UWB <30 cm accuracy for indoor scenarios
-
Suitable for:
-
Workshops
-
Warehouses
-
Crane hoisting areas
-
Vehicle anti-collision zones
-
③ Unified Communication Layer
Supports multiple industrial communication mechanisms:
| Communication | Description |
|---|---|
| 4G Full-Netcom | Real-time data transmission |
| 5G (Optional) | Low-latency, high-throughput communication |
| RJ45/Ethernet | Wired industrial communication |
| UART | Integration with vehicle controllers |
④ Cloud / Server Layer
-
Real-time data reporting
-
Operation logs & historical playback
-
Geofence alerting
-
Crane anti-collision algorithm
-
Vehicle-to-vehicle proximity alerts
⑤ Application Layer
-
Vehicle anti-collision
-
Crane boom collision avoidance
-
High-precision vehicle navigation
-
Yard positioning
-
Tunnel or mining equipment positioning
Separated Component Design

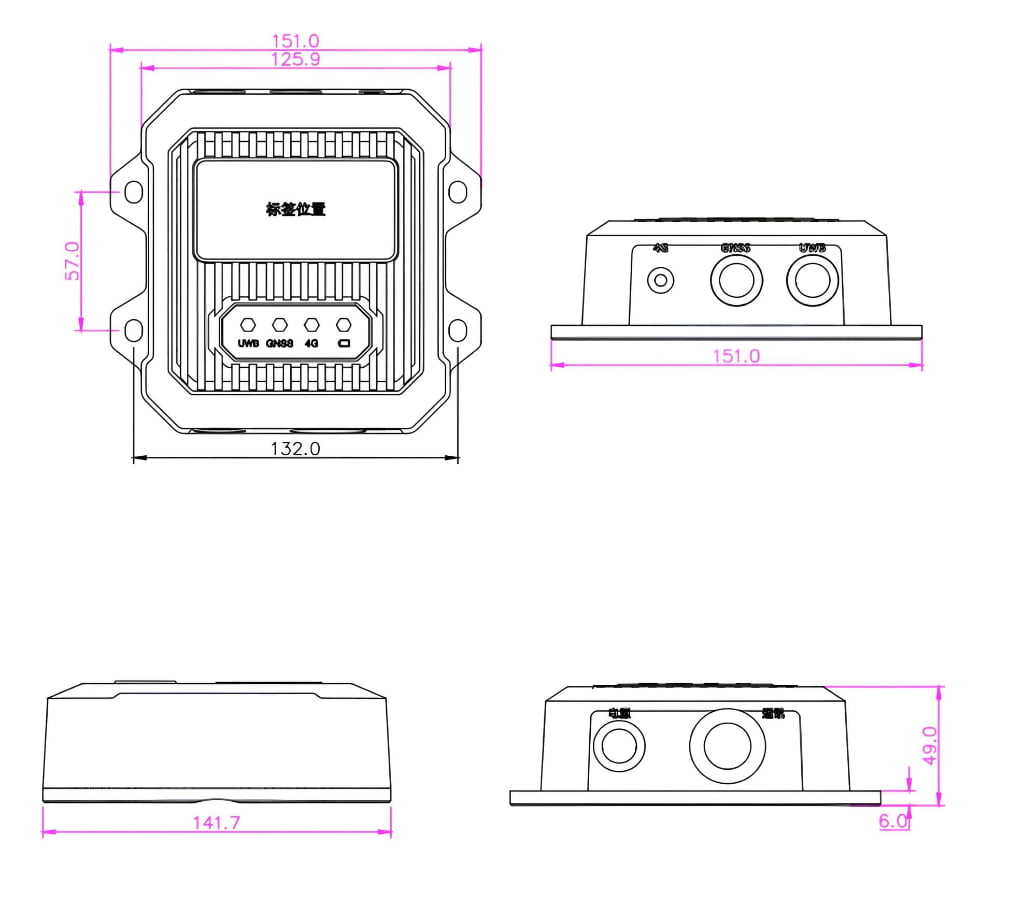

Vehicle Terminal Host Unit
-
Handles RTK/GNSS processing
-
Provides real-time output through 4G/Ethernet
-
IP67 aluminum alloy enclosure

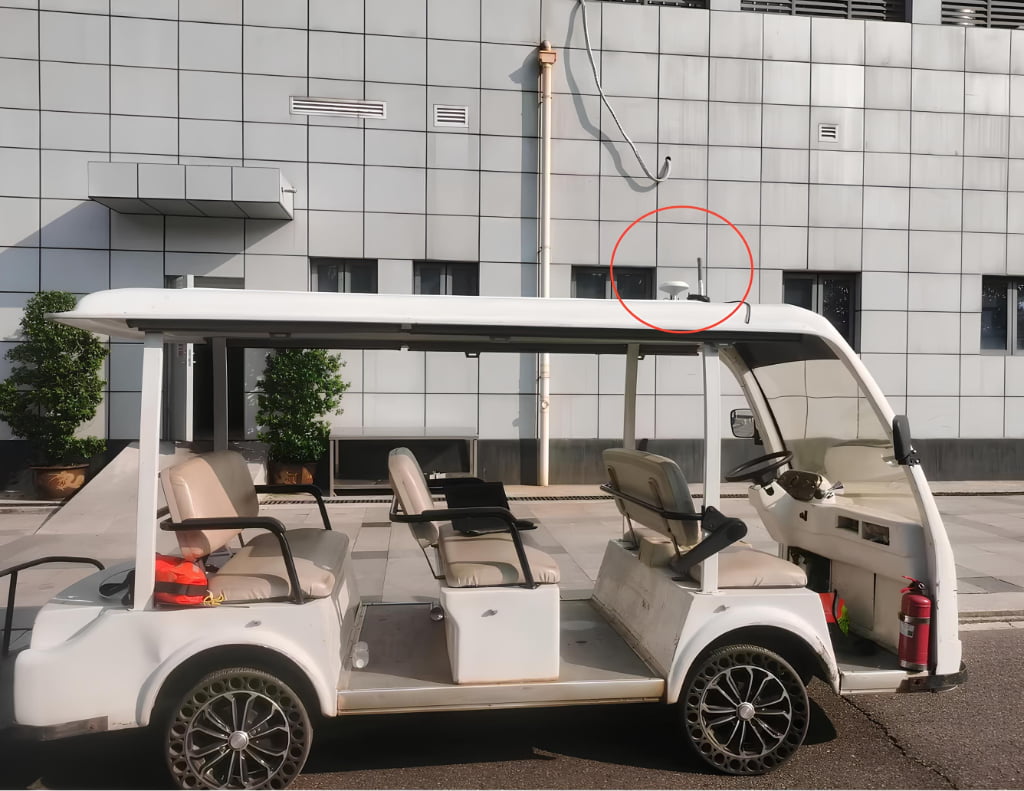

GNSS High-Gain Antenna
-
Installed on roof of vehicle
-
Connected via coaxial cable
-
Strong multipath resistance
Optional UWB Antenna
-
For indoor / semi-outdoor accuracy <30 cm
-
Supports anti-collision zones
Industrial Reliability
-
Wide temperature: −40°C to +80°C
-
IP67 enclosure
-
Strong vibration resistance
-
Surge & static protection
-
Supports long-term outdoors operation
Applications
-
Port yard vehicles
-
Mining dump trucks
-
Tunnel construction vehicles
-
Crane & hoist positioning
-
Factory AGV/IGV systems
-
Chemical industry park vehicles
-
Golf carts / patrol vehicles
-
Engineering machinery
