What positioning technologies does the URT terminal support?

The URT terminal integrates UWB (

How accurate is the RTK mode?

RTK delivers centimeter-level accuracy, with horizontal ±3 cm + 1 ppm and vertical ±5 cm + 1 ppm in open-sky environments.

What communication options are available?

It supports 4G full-network communication, with optional 5G or LoRa expansion modules.

Does the URT support emergency alert functions?

Yes. It includes SOS one-key alert, TTS voice broadcast, and motion/static detection alarms.

What is the battery capacity and charging method?

URT uses a 3000mAh battery and supports 4-pin magnetic charging for safety and convenience.

Is it suitable for harsh industrial environments?

Yes. It is rated IP66, operates in –20°C to 65°C, and withstands 0–90% humidity (non-condensing).

It is designed as a chest-mounted or shoulder-mounted terminal, suitable for workers who require stable tracking without obstructing movement.

URT — RTLS Fusion Terminal

The URT Hybrid Positioning Terminal is an industrial-grade wearable tracking device that integrates UWB high-precision positioning, RTK centimeter-level positioning, GPS outdoor positioning, and 4G wireless communication. It provides real-time personnel tracking, SOS emergency alerts, TTS voice broadcasting, motion detection, and optional NFC/Lora/5G expansion. With an IP66 rugged design and a 3000mAh magnetic-charging battery, the URT terminal is ideal for complex industrial environments such as factories, tunnels, construction sites, rail transit, and energy facilities.

SKU: URT001

Get a Quote Jump to Specs

Two black handheld communication devices are shown; one stands upright displaying an orange "SOS" button and indicator lights, while the other lies flat on a reflective surface.

Transmission & Network

Primary Transmission

Ethernet (RJ45)

Network Topology

Wired

At-a-Glance

Positioning Accuracy

With RTK: Horizontal: ±3 cm + 1 ppm; Vertical: ±5 cm + 1 ppm

Positioning Technologies

UWB, GNSS/Beidou

Frequency Band

UWB: 6.24–6.74 GHz

Update Rate

1–10 Hz

Communications & Interfaces

4G, 5G, LoRA

Battery Capacity

3000mAh

Hot-swappable Battery

Ingress Protection

IP66

Operating Temperature

–20°C ~ 65°C

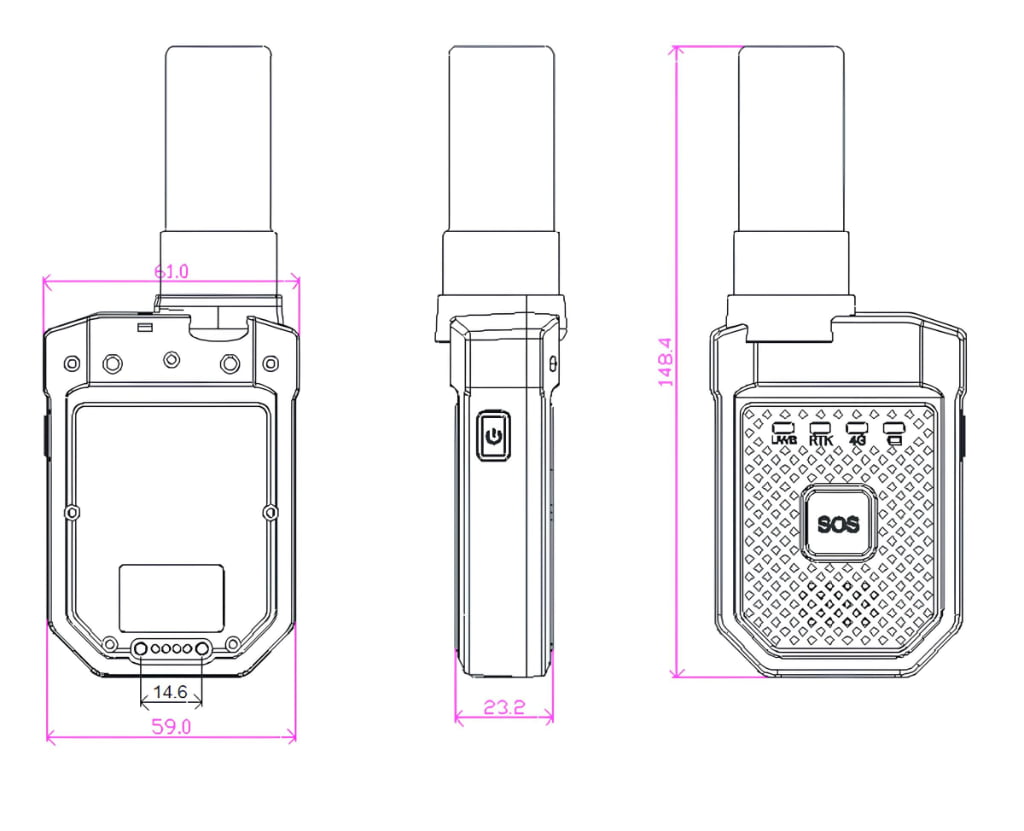

Dimensions

57 × 85 × 23 mm

Weight

<140 g

Accuracy: 3cm

Range: 100m

Temp: -20~65°C

Weight: 140g

Description

The URT Hybrid Positioning Terminal is a professional-grade wearable device designed for high-precision personnel tracking in demanding industrial environments. It combines three major positioning technologies—UWB, RTK, and GPS—to deliver uninterrupted real-time location awareness across both indoor and outdoor scenarios.

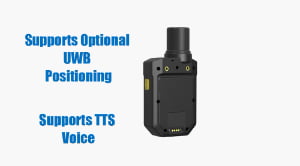

A compact black device with a cylindrical top; blue text reads "Supports Optional UWB Positioning" and "Supports TTS Voice.

Hybrid Positioning Capabilities

UWB High-Precision Positioning (<30 cm)

Provides centimeter-level accuracy inside workshops, tunnels, warehouses, and equipment-dense areas.
Ideal for collision avoidance, safety monitoring, and personnel flow management.

RTK Centimeter-Level Outdoor Positioning (±3 cm)

Supports high-precision surveying-grade RTK positioning.
Horizontal accuracy: ±3 cm + 1 ppm
Vertical accuracy: ±5 cm + 1 ppm
Suitable for complex outdoor construction, rail transit, energy operations, and mapping tasks.

GPS Outdoor Positioning

Provides stable open-sky accuracy of 2–3 meters when RTK is not active.

Together, these technologies ensure continuous indoor–outdoor tracking, eliminating blind spots.

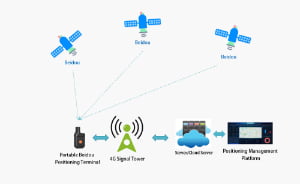

Diagram showing Beidou satellites sending signals to a portable positioning terminal, which connects via a 4G tower to a server and then to a positioning management platform.

Industrial Communication & Expansion Modules

The URT terminal features a 4G full-network module, delivering stable long-range communication.
Optional modules include:

5G module for ultra-low-latency data
LoRa module for low-power long-range communication
NFC for identity and workflow interaction
Open API for third-party system integration

This makes URT suitable for large-scale industrial IoT deployments.

Safety Protection Functions

The terminal includes multiple safety alerts:

SOS one-button alarm
TTS voice broadcast
Static/no-movement alarm
Motion detection
Automatic sleep/wake mode

These allow early detection of accidents, emergencies, or unusual behavior.

Rugged Industrial Design

With an IP66 waterproof/dustproof rating, the URT terminal operates reliably in:

Rainy outdoor conditions
Dusty construction sites
Underground tunnels
High-vibration environments

Its compact 140 g body ensures comfortable all-day wearing on the chest or shoulder.

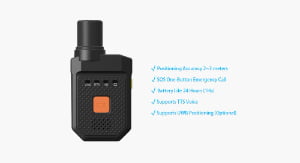

A black handheld device with an orange SOS button is shown next to a list of features including accurate positioning, emergency call, 24-hour battery, TTS voice, and optional UWB positioning.

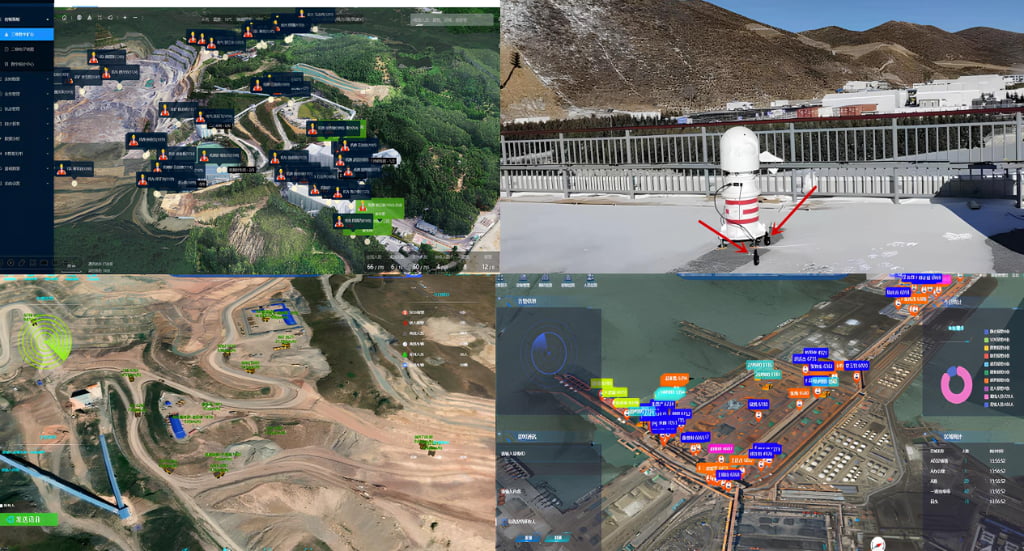

Application Scenarios

Construction safety management
Tunnel operations and underground works
Rail transit workforce tracking
Chemical plant safety
Power station O&M
Smart manufacturing
Hazardous zone personnel monitoring
Lone-worker protection

The URT terminal improves personnel safety, enhances operation transparency, and supports digital transformation across industrial facilities.

Specifications

Charging Voltage	DC 5V / 1A
Indicator Lights	4 LEDs
Charging Method	4-pin magnetic charging
Battery Capacity	3000mAh
Communication Mode	4G full-network (optional 5G / LoRa)
Device Dimensions	57 × 85 × 23 mm
Weight	<140 g
Operating Temperature	–20°C ~ 65°C
Operating Humidity	0–90% RH non-condensing
Protection Rating	IP66
Sleep Mode	Supported
SOS Alarm	Supported
TTS Voice Broadcast	Supported
Motion Monitoring	Supported
Satellite Frequency	1 Hz (optional up to 20 Hz)
Satellite System	GPS + (optional multi-GNSS)
RTK Accuracy	Horizontal: ±3 cm + 1 ppm; Vertical: ±5 cm + 1 ppm
Non-RTK Accuracy	2–3 m (open sky)
UWB Positioning	Supported (requires UWB base stations)
UWB Frequency	6.24–6.74 GHz
UWB Refresh Rate	1–10 Hz
UWB Accuracy	<30 cm (LOS)
Communication Distance	>100 m
