Product Overview
The TXWG Communication Gateway is an industrial LPWAN gateway designed for long-distance, low-power IoT communication scenarios.
Based on LORA (LPWAN) long-range wireless technology, it provides extended communication coverage and enables low-power operation for terminal devices such as personnel locators and sensors.
This gateway acts as the core communication node and provides:
● Long-Range Communication
Covers large industrial areas such as chemical plants, tank farms, and mining sites.
● Multi-Channel, Multi-Rate Forwarding
Handles numerous terminal devices simultaneously.
● LORA Self-Organizing Network
Automatically establishes wireless mesh communication between gateways and terminals.
● 4G Connectivity
Uploads data to cloud servers for analysis and monitoring.
● GPS Time Synchronization
Uses satellite timing for accurate networking coordination.
● Low Power Consumption for Terminals
Terminals communicate using LPWAN, significantly extending battery life.
● High Security
Supports multiple encryption layers for device and application-level protection.
● IP67 Waterproof / Dustproof + Explosion-Proof T6 Gb
Suitable for hazardous industrial environments such as chemical zones and explosive gas areas.
System Architecture

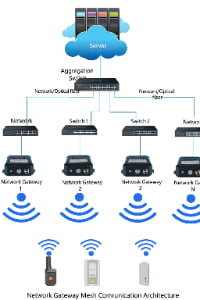

Architecture A – LORA Self-Organizing Communication Network
-
Each communication gateway connects to uplink switches (Switch 1, Switch 2 … Switch n).
-
Gateways communicate with terminal devices via LORA long-range wireless links.
-
Multiple gateways can interconnect to form a self-organizing mesh network.
-
Data is forwarded upward through the aggregation switch to the server/cloud platform for centralized processing.
Structure:
-
Communication Gateways (1~n) → LORA wireless → Terminal devices
-
Gateways → RJ45/Optical Fiber → Switches → Aggregation Switch → Server/Cloud

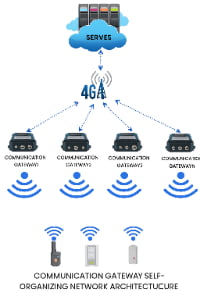

Architecture B – 4G Communication Mode
-
Gateways gather data from mobile terminals via LORA.
-
Each gateway connects to the cloud server over 4G cellular networks.
-
Ideal for locations without wired network infrastructure.
Structure:
-
Mobile terminals → LORA → Gateway → 4G → Cloud Server
3. Application Scenarios
● Chemical Plants
Long-distance wireless communication in hazardous explosion-proof areas.
● Petrochemical Tank Farms
Remote monitoring of tank areas, pipelines, and safety systems.
● Industrial Pipelines & Valve Networks
Ensuring reliable long-range data transmission.
● Personnel Tracking Systems
Low-power positioning terminals use the gateway to upload data.
● Mining & Harsh Environments
Explosion-proof and IP67 design ensures reliability.
● Large Outdoor Sites
Supports multi-gateway networking to cover wide regions.
4. Key Advantages
✓ Long-Range LPWAN Wireless Coverage (>300 m)
Works even in open industrial outdoor environments.
✓ Multi-Level Security
Encryption at device and application layers.
✓ Cloud Connectivity
Supports big-data analysis, multi-site management, and remote maintenance.
✓ Fully Explosion-Proof
Certified Ex ib IIC T6 Gb
✓ Remote 4G Firmware Updates
Zero-touch maintenance.

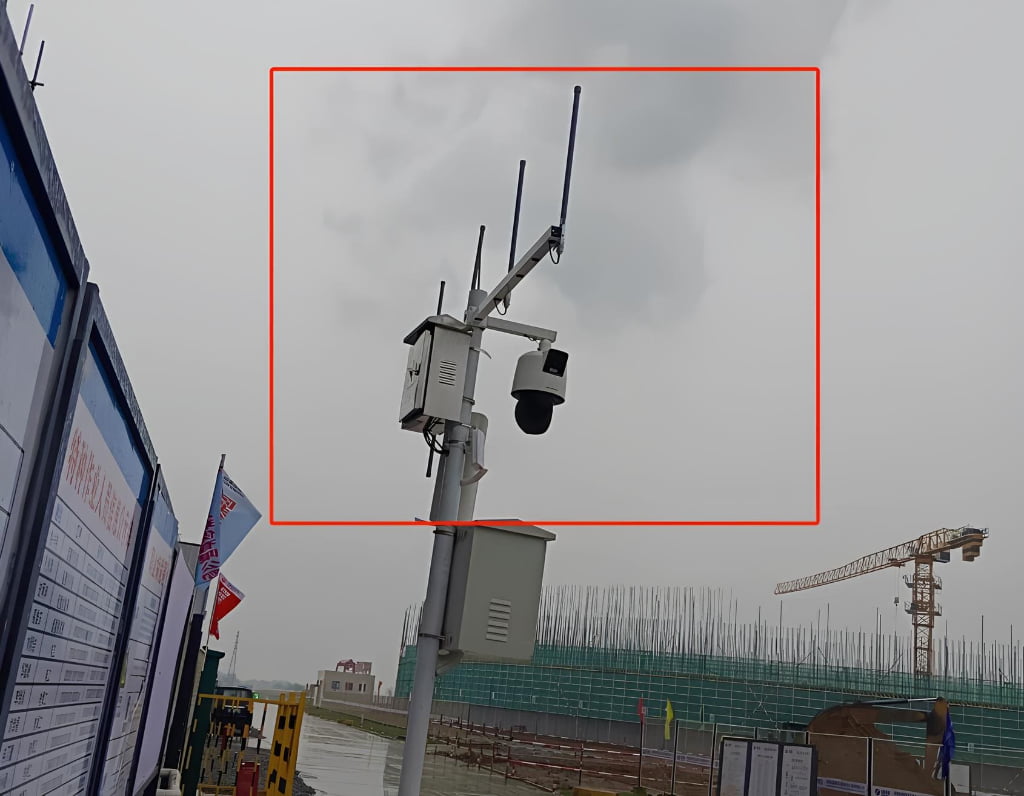

✓ Rugged Industrial Protection (IP67)
Dustproof, waterproof, suitable for rain, dust, and high-temperature environments.
