What is the SW UWB Base Station used for?

It enables sub-meter-level positioning for people, vehicles, and assets in industrial plants, tunnels, and hazardous areas, ideal for safety management and automation.

How accurate is its positioning performance?

The device achieves 100 m, ensuring reliable real-time tracking.

What power and network options does it support?

Supports both DC 12–24 V and standard PoE supply, and RJ45 wired + 4G cellular communication; Wi-Fi and 5G connectivity are available as options.

Is the product explosion-proof?

Yes, an optional Ex ib IIC T4 Gb explosion-proof version is available for use in flammable or high-risk environments.

What are the antenna and installation types?

It supports external omnidirectional or directional antennas and can be wall-mounted or pole-mounted for flexible deployment.

How durable is the housing?

The aluminum-alloy enclosure ensures mechanical strength and corrosion resistance, while IP67 protection prevents dust and water ingress.

What operating conditions can it handle?

Works reliably from –40 °C to +85 °C, with humidity up to 90 % non-condensing, suitable for harsh industrial environments.

How many base stations are needed for a UWB system?

At least three base stations are required for 2D positioning; fewer can be used for presence or 1D tracking depending on application needs

SW — UWB Positioning Anchor / Base Station

The SW UWB Positioning Base Station is an industrial-grade device designed for sub-meter accuracy tracking of personnel, vehicles, and assets in factories, tunnels, and other complex environments.

SKU: SW001

Get a Quote Jump to Specs

A black SW UWB Anchor device with labeled ports and a sticker showing specs, featuring indicator lights for LWB, GNSS, and 4G.

At-a-Glance

Positioning Accuracy

<30cm

Positioning Technologies

UWB

Frequency Band

6.25-6.75GHz

Communications & Interfaces

RJ45 (Ethernet), DC 12–24 V, 4G, GNSS, UWB

Power Input

DC12～24V/POE

Hot-swappable Battery

Ingress Protection

IP67

Explosion-proof Rating

Ex ib IIC T4 Gb（Optional)

Operating Temperature

-40℃～85℃

Dimensions

151×141×49mm

Weight

<1.2Kg

Accuracy: 30cm

Range: 100m

Temp: -40~85°C

Weight: 1200g

Description

The SW UWB Positioning Base Station is an industrial-grade device designed for sub-meter accuracy tracking of personnel, vehicles, and assets in factories, tunnels, and other complex environments.
Built with a durable aluminum-alloy housing and rated IP67, it offers explosion-proof (Ex ib IIC T4 Gb optional) protection. The unit supports PoE/DC power, RJ45 and 4G communication (Wi-Fi/5G optional), and features external omnidirectional or directional antennas for stable coverage.
Operating from 6.25 – 6.75 GHz, it delivers < 30 cm precision and a communication range over 100 m.

Specifications

Device Interfaces	RJ45 port, DC, UWB, GNSS, 4G
Indicator Lights	4 LEDs: GNSS, UWB, DC, 4G
RJ45 Communication	Supported
Communication Mode	4G full network (optional WiFi/5G)
RTK Positioning	Optional function
Power Supply Voltage	DC 12–24V / Standard POE
Power Consumption	< 5W

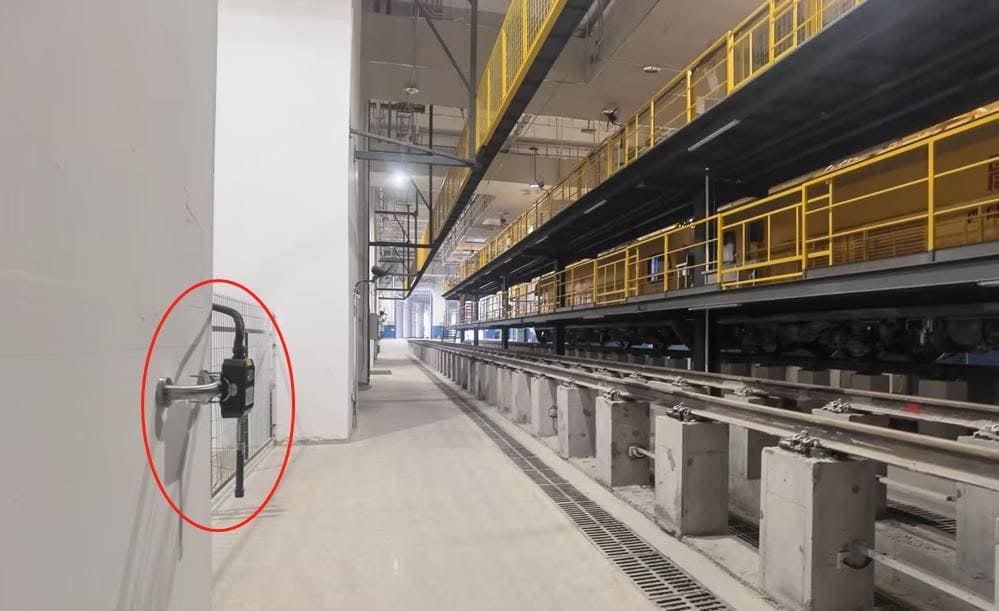

Installation Method	Wall-mounted / pole-mounted
Material	Aluminum alloy
Operating Frequency Range	6.25–6.75 GHz
Antenna Type	External omnidirectional / directional
Explosion-Proof Rating	Ex ib IIC T4 Gb (optional)
Positioning Accuracy	< 30 cm (line of sight)
Communication Distance	> 100 meters

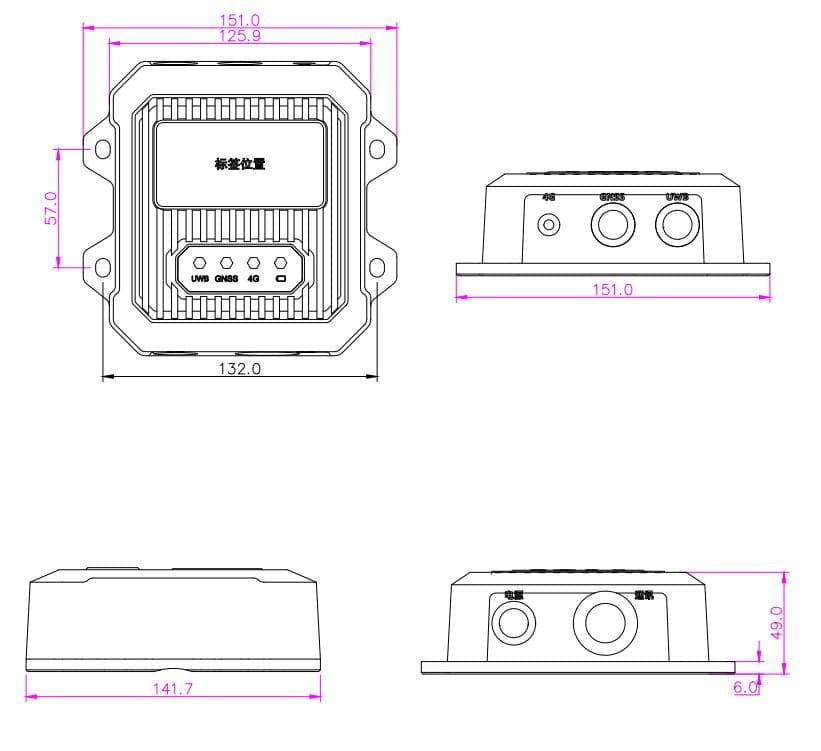

Device Dimensions	151 × 141 × 49 mm
Device Weight	< 1.2 kg
Operating Temperature	-40°C to +85°C
Operating Humidity	0%–90%, non-condensing
Protection Rating	IP67 (waterproof and dustproof)
