What is the GP UWB Employee Card used for?

It is used for real-time personnel tracking, safety management, and access control in industrial environments. The card enables centimeter-level positioning accuracy to enhance operational safety and efficiency.

What is the positioning accuracy and range?

The card achieves 10–30 cm precision (in unobstructed environments) and maintains stable communication over 100 meters.

What are the main safety features?

It includes SOS emergency button, buzzer alerts, motion/static detection, and configurable static sleep mode for power optimization.

How is it powered and charged?

Equipped with a 900 mAh rechargeable lithium battery, the device supports USB Type-C charging. It can also be charged using an optional 20-port centralized charging base for fleet management.

What are the optional features available?

The GP card supports NFC/RFID for identity access, E-ink display for visual information, and LoRa for long-distance wireless data transmission.

What environmental protection and certifications does it have?

Rated IP66, it is waterproof and dustproof, built with industrial-grade components, and certified Ex iB IIC T4 Gb explosion-proof.

How is the device worn?

It can be worn around the neck using a lanyard or attached to clothing for convenient identification and tracking.

What industries typically use this product?

It’s widely used in manufacturing plants, power plants, tunnels, logistics facilities, and hazardous worksites requiring personnel positioning, safety monitoring, and workflow optimization.

GP — Wearable UWB Positioning Tag

The GP UWB Positioning Employee Card is a compact, intelligent badge-style positioning device designed for industrial personnel management and safety monitoring. Built on UWB (Ultra-Wideband) technology, it achieves 10–30 cm accuracy, supports real-time location tracking, and enables instant SOS alerts via a one-touch button. The device includes vibration reminders, motion/static detection, and optional NFC/RFID, E-ink display, and LoRa communication modules. With an IP66-rated enclosure and 900 mAh rechargeable battery, it operates continuously in demanding environments such as factories, construction sites, logistics parks, and tunnels.

SKU: GP001

Get a Quote Jump to Specs

A rectangular white device with a screen displaying Chinese text, a time reading 08:26, an ID number, and a yellow SOS button below the display.

Transmission & Network

Primary Transmission

Ethernet (RJ45)

Network Topology

Wired

At-a-Glance

Positioning Accuracy

10–30 cm (unobstructed)

Positioning Technologies

UWB

Communications & Interfaces

LoRA

Battery Capacity

900 mAh

Hot-swappable Battery

Ingress Protection

IP66

Explosion-proof Rating

Ex iB IIC T4 Gb

Operating Temperature

–20 °C to +60 °C

Dimensions

90 × 54 × 11 mm

Weight

56 g

Accuracy: 20cm

Range: 100m

Temp: -20~60°C

Weight: 56g

Description

Overview

The GP UWB Positioning Employee Card combines high-precision location tracking with employee identification in a slim, durable, and industrial-grade form factor.
Leveraging Ultra-Wideband (UWB) communication, it provides centimeter-level positioning accuracy, fast response times, and strong anti-interference performance, making it ideal for high-density and metallic environments such as factories and tunnels

Key Features

High Precision & Reliability:
UWB signal timing technology ensures 10–30 cm accuracy for personnel and asset tracking, even in complex indoor environments.
Multiple Alert Modes:
Includes SOS button, buzzer, vibration, and motion/static detection for real-time safety notifications
Low Power Design:
The 900 mAh rechargeable battery provides long runtime, supported by smart static sleep mode that automatically reduces power consumption when idle.
Flexible Communication Options:
Supports UWB, NFC, and optional LoRa wireless transmission for seamless integration into both wired and wireless positioning networks
Modular Expansion:
Add E-ink display for real-time user messages or identity data, and NFC/RFID for badge scanning or door access.
Easy Management:
Offers USB Type-C charging or a 20-port centralized charging base for large-scale deployments, ideal for factories managing hundreds of tags
Industrial Durability:
Rugged housing with IP66 dust and water resistance, explosion-proof certification, and –20 °C to +60 °C operating range for demanding field conditions.

Applications

Factory Workforce Management — Monitor and analyze worker movements, attendance, and task zones.
Tunnel & Underground Safety — Ensure real-time worker visibility, hazard-zone alerts, and emergency response.
Logistics & Warehousing — Track employee and forklift positions to optimize material flow.
Construction & Power Plants — Support site security and compliance monitoring.

Advantages

Centimeter-level UWB precision for safety and efficiency.
SOS & motion detection improve worker protection.
Rechargeable, long-lasting battery for cost-effective operation.
Flexible communication (UWB/NFC/LoRa) for hybrid deployment.
Durable IP66 enclosure built for industrial reliability.

Specifications

Protocol	802.15.4a, 802.11AN, GB/T17626.2–2006

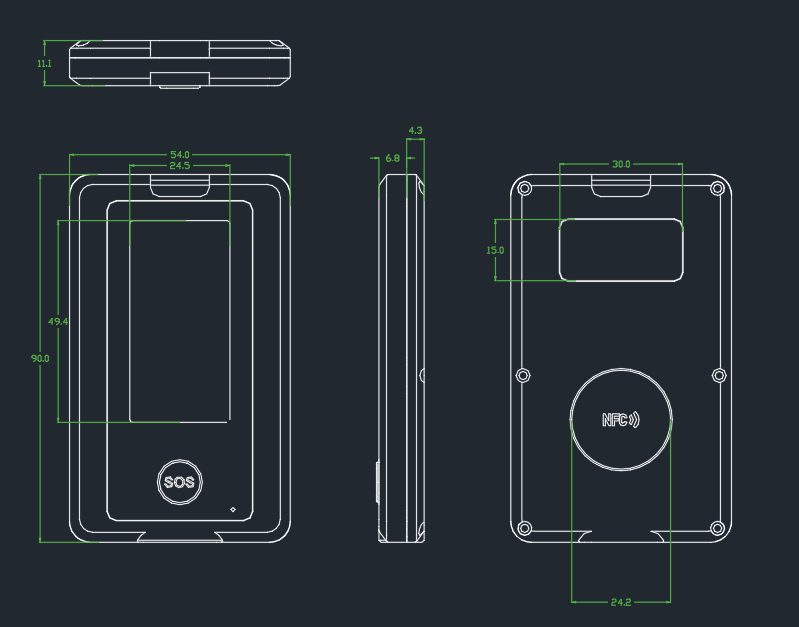

Dimensions	90 × 54 × 11 mm
Weight	56 g
Positioning Accuracy	10–30 cm (unobstructed)
Communication Distance	>100 m
Battery Capacity	900 mAh rechargeable lithium battery
Operating Temperature	–20 °C to +60 °C
Explosion-Proof Rating	Ex iB IIC T4 Gb
Charging Method	USB Type-C
Buzzer Alert	Supported
SOS Button	Supported
Stillness Detection	Supported
NFC/RFID	Optional
E-ink Display	Optional
LoRa Communication	Optional
Protection Level	IP66
Indicator Lights	2 (Signal + Power)
Static Sleep Function	Supported (via configuration software)
Charging Base	Optional 20-Port centralized charging base
