The FZ Industrial Collision Avoidance Radar is a high-precision anti-collision system designed specifically for industrial vehicles and machinery. With a detection distance over 100 meters and ±30 cm accuracy, it offers reliable and stable safety protection for various industrial operations.
The radar features dual relay outputs, multi-level alarm settings, strong anti-electromagnetic interference capability, and IP67-rated protection to ensure continuous operation in harsh conditions such as dust, vibration, humidity, and temperature extremes.
Key Features
✔ 1. Long-Range and High-Precision Detection
-
Supports >100 meters detection distance in open air
-
High collision accuracy: ±30 cm
-
Suitable for cranes, loaders, forklifts, mining trucks, and other vehicles
✔ 2. Industrial-grade Anti-Interference
-
Superior resistance to electromagnetic interference
-
Stable communication in steel plants, mining sites, manufacturing workshops
✔ 3. IP67 Protection
-
Dust-proof
-
Rain-proof
-
Shock-resistant
-
Ensures reliable operation under extreme conditions
✔ 4. Dual Relay Output
-
Supports 2 channels normally open
-
Supports 2 channels normally closed
-
Easy integration with horns, lights, vehicle controllers, PLC, and alarm systems
✔ 5. Ultra-Flexible Power and Communication
-
Compatible with DC12–24V
-
Supports RS485 communication
-
MODBUS-RTU optional
✔ 6. 24/7 Continuous Operation
-
Designed for industrial duty cycles
-
No calibration required after installation
-
One-time setup and long-term stability

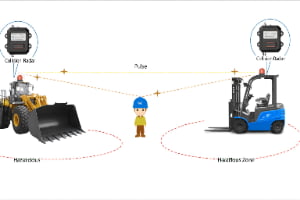

Application Scenarios
✔ Loader Collision Prevention
Used for loader reversing safety, ensuring vehicle–vehicle and vehicle–personnel protection.
✔ Overhead Crane Anti-Collision
Widely applied in steel mills, warehouses, and material handling cranes.
✔ Forklift Anti-Collision
Provides real-time alarm during aisle operation or blind-spot areas.
✔ Mining Truck Anti-Collision
Supports long-distance detection for mining transport vehicles.
✔ Engineering Vehicles
Suitable for bulldozers, excavators, and underground transport vehicles.
Package Includes
-
1 × FZ Collision Avoidance Radar
-
1 × Mounting Bracket
-
1 × Installation Accessories
-
1 × User Manual
